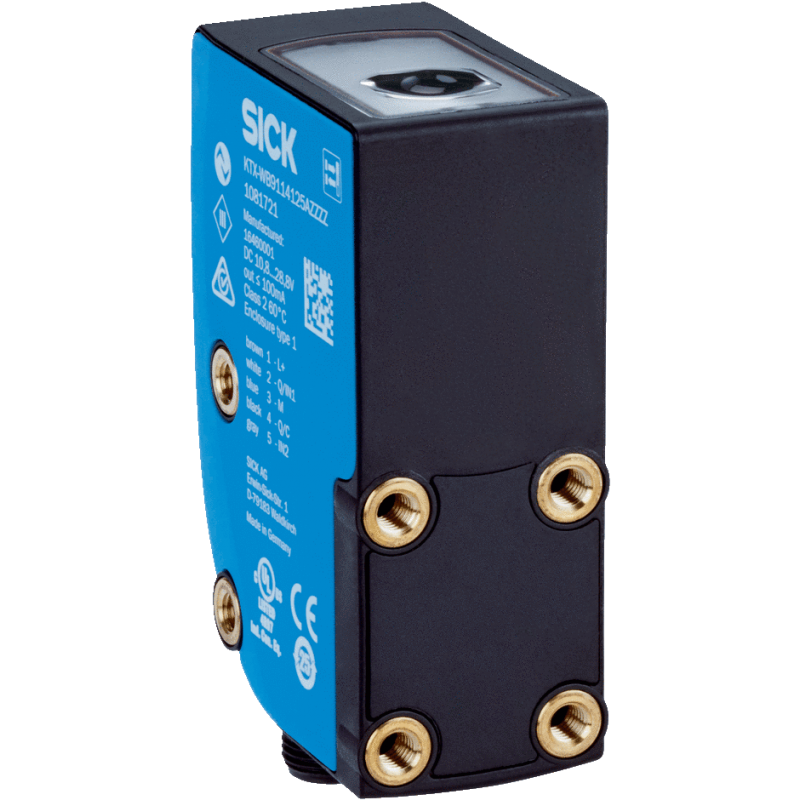

Contrast sensor KTX Prime KTX-WN92142252ZZZZ SICK

Contrast sensor KTX Prime KTX-WN92142252ZZZZ SICK.

This contrast sensor is a replacement for KT5W-2N2116D.

Connection type: Male connector M12, 5-pin.

Supply voltage: 10.8 V DC ... 28.8 VDC.

Enclosure rating: IP67.

Jitter: 5 μs. Switching output: NPN.

Circuit protection: UV connections, reverse polarity protected, output Q short-circuit protected, interference pulse suppression.

Dimensions (W x H x D): 30 mm x 53 mm x 78.5 mm. Weight: 94 g.

Housing material: Plastic, VISTAL®.

Optics material: Plastic, COP.

Ambient operating temperature: –20 °C ... +60 °C.

Ambient temperature, storage: –25 °C ... +75 °C.

Shock load: According to IEC 60068-2-27 (30 g/11 ms).
